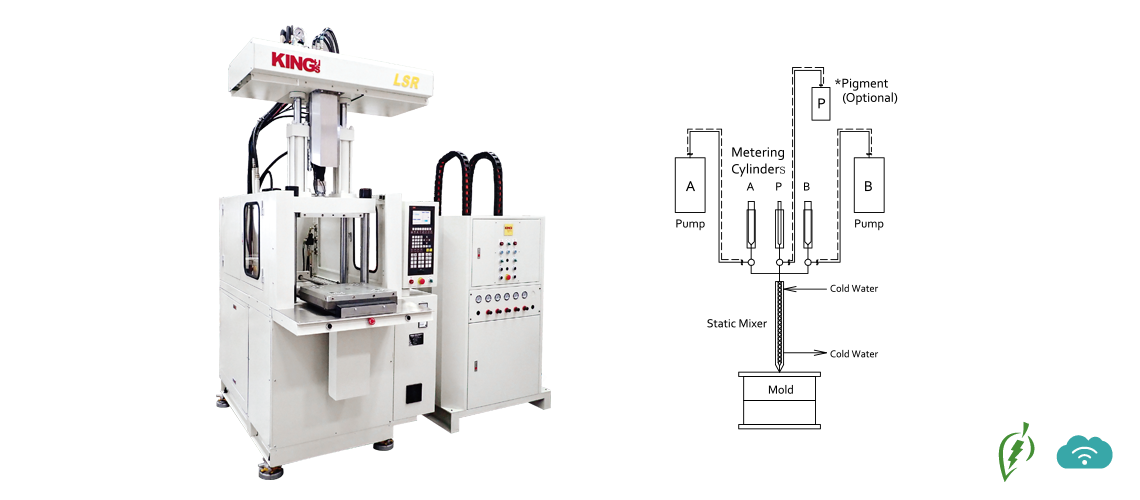

Features
- Precision vertical clamping system (parallelism/ flatness : 0.02/100mm) , heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
- Increased productivity and efficiency with shuttle table or rotary table configuration. Pick and place products while another product finsihes molding.
- Energy savings of around 50-70% with servo pump power system.
- Safety cover, Light curtain, pneumatic door and dual palm safety button for personnel safeguard.
- Multi-Language PC Base industrial type Linux core system.
- 1000 sets of mold settings can be stored and export as backup.
- Complete record of history settings & warnings. Built in USB connect.
- On-line remote control and maintenance service.
Vertical Hydraulic Clamping System
Safety Design for Operator
Energy Saving
Operator-friendly
Main specifications
| Model | KL520-200-80DVS-1-S68 | KL560-300-120DV2S-1-S68 | KL660-400-160DV2S-1-S68 | |
|---|---|---|---|---|
| INJECTION UNIT | ||||
| Plunger Diameter | mm | 25 x 2 | 31.5 x 2 | 36 x 2 |
| Injection Pressure | kgf/cm² | 441 | 444 | 439 |
| Injection Capacity | cm³ | 196 | 312 | 407 |
| Injection Weight﹝LSR﹞ | oz | 7.5 | 11.9 | 15.5 |
| gram | 212 | 336 | 439 | |
| Injection Rate | cc/s. | 171 | 312 | 407 |
| Injection Speed | mm/s. | 174 | 200 | 200 |
| Plunger Stroke | mm | 200 | ||
| Nozzle Stroke | mm | 280 | ||
| Nozzle Contact Force | ton | 8.5 | ||
| CLAMPING UNIT | ||||
| Clamping Force | ton | 80 | 120 | 160 |
| Minimum Mold Height | mm | 200 | 250 | 250 |
| Opening Stroke Maximum Daylight | mm |
580 (without Heating Platen) 400 (with Heating Platen) |
690 (without Heating Platen) 500 (with Heating Platen) |
690 (without Heating Platen) 500 (with Heating Platen) |
| Overall Size of Platens | mm | 700 x 570 | 770 x 570 | 920 x 720 |
| Space Between Columns | mm | 520 x 385 | 560 x 360 | 660 x 460 |
| Size Of Shuttle Table | mm | 510 x 540(single slide) | 550 x 1150(double slide) | 650 x 1450(double slide) |
| Shuttle Table Stroke | mm | 540 | 580 | 730 |
| Ejector Force | ton | 2.7 | ||
| Ejector Stroke | mm | up 100 | ||
| ELECTRICAL EQUIPMENT & GENERAL | ||||
| Power Source | V/HZ | 380/60/50 | ||
| Drive Motor | KW | 7.5 | 15 | 15 |
| Heater | kw | 3.6 (option) | 5.5 + 5.5 (option) | 7.5 + 7.5 (option) |
| Temperature Control Zone | ZONE | 2+1 (middle) | 3+2 (middle) | 3+2 (middle) |
| Hydraulic System Pressure | kgf/cm² | 140 | 160 | 160 |
| Machine Dimension | m | 2.2 x 1.4 x 3.1 | 2.2 x 1.5 x 3.8 | 3.2 x 1.8 x 4.2 |
| Machine Weight | Ton | 4 | 5.5 | 7 |
| ★Option：Heating Platen、LSR Transfer pump A/B/P - (a) 55 gallon (b) 5 gallon | ||||
