Applications
Features
- Rapid, high-precision direct hydraulic clamping system. Automatic needle loading, multistage ejection setting.
- Two adjustable nozzles with hot runners, molding 2 heels without runner in one shot.
- Multi-section injection proportional control.
- Hydraulic proportional control system with energy saving variable pump.
- Heels drop automatically cooled by water-cooling tank with conveyor, increase 30% productivity.
Main specifications
| INJECTION UNIT | ||||
|---|---|---|---|---|
| Shotting Pot Diameter | mm | 44 | 30 | |
| Injection Pressure | kgf/cm² | 940 | 2022 | |
| Injection Capacity | cm³ | 228 | 106 | |
| Injection Weight | oz | 8.5 | 4.5 | |
| gram | 242 (ABS) | 127 (PC) | ||
| Injection Rate | cc/s. | 60 | ||
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 150 | ||
| Nozzle Stroke | mm | 150 | ||
| Nozzle Contact Force | ton | 4.3 | ||

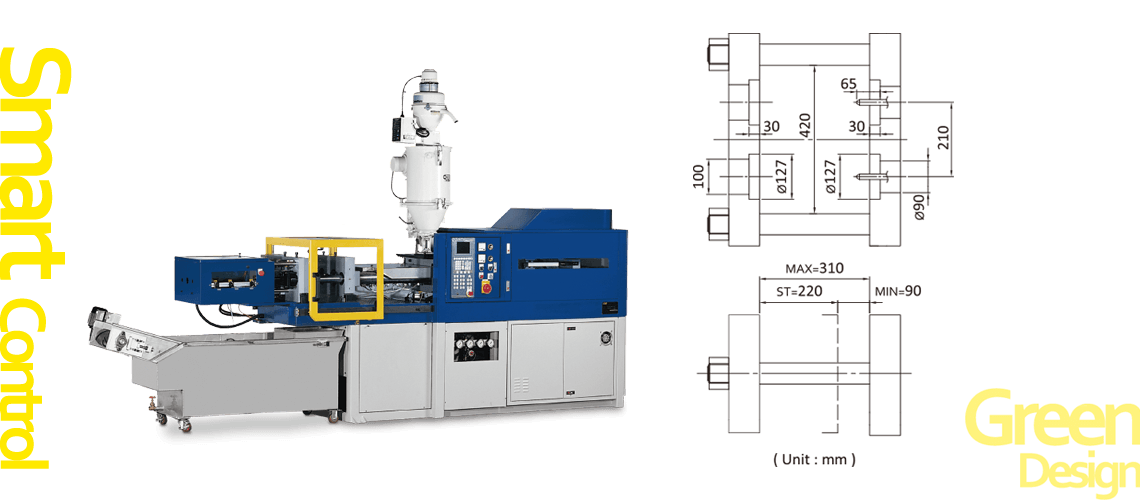

| CLAMPING UNIT | ||||
| Clamping Force | ton | 35 | ||
| Opening Stroke | mm | 220 | ||
| Minmum Mold Height | mm | 90 | ||
| Maximum Daylight | mm | 310 | ||
| Overall Size Of Platens | mm | 600*340 | ||
| Spzce Between Columns | mm | 410 | ||
| Ejector Force | ton | 2.7 | ||
| Ejector Stroke | mm | 300 | ||
| ELECTRICAL EQUIPMENT & GENERAL | ||||
| Power Source / Voltage | v/hz | 380 / 60 | ||
| Drive Motor | kW | 5.6 | ||
| Heater | kW | 8.24 | ||
| Temperature | zone | 5 | ||
| Hydraulic System Pressure | kgf/cm² | 140 | ||
| Machine Dimension | m | 4.1*0.8*1.7 | ||
| Machine Weight | ton | 2.5 | ||
